■製品仕様  メーカーリンク

---

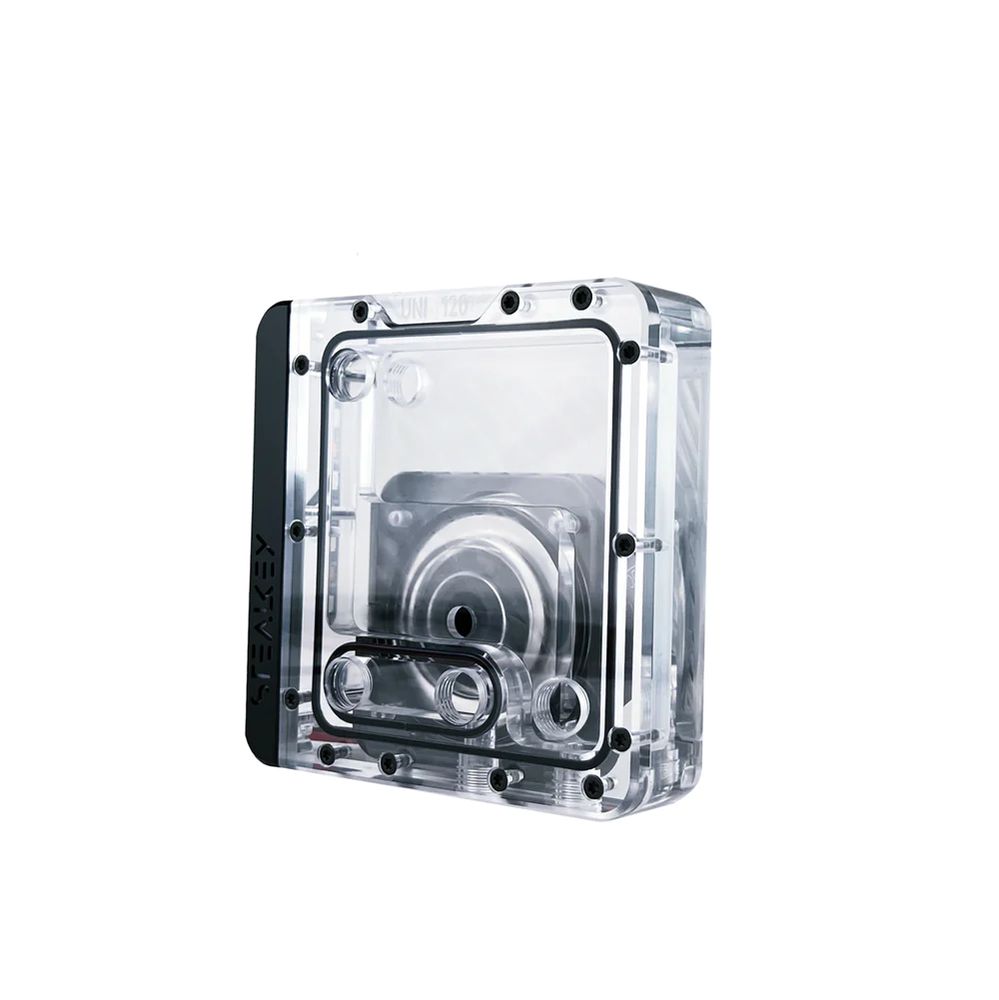

120mmファン穴に取付け可能なフラットタイプのポンプリザーバー
Xylem LOWARA D5 VARIO ポンプ搭載
アドレッサブルRGB LED搭載

揚程：3.7m　流量：1500L/h
サイズ：120x120x31mm (ポンプ含まず)
接続口：G1/4 x7

電源供給はペリフェラル4ピンにて行います
3ピンファンコネクタをマザーボード等に接続すると回転数を監視出来ます
ポンプ本体の回転数は背面の赤いツマミで調整可能(5段階)

ポンプを設置する空間を確保するためのブラケット(オプション、別売)もございます
販売ページはこちら

ご注意事項：
・空回し禁止
　必ず水が流れる状態で稼働させてください。
・レンチを使用せずに、手締めでフィッティングを締めて下さい。アクリルに亀裂が入るリスクがあります。

インストレーションマニュアル(PDF)


DESCRIPTION
A new product series with something for EVERYONE. The UNI Distroplates / Reservoirs should enable you to have a compact, solid and yet versatile cooling circuit.

features in detail
The addressable D-RGB lighting ensures an outstanding look. We are particularly proud of our backlit lettering "STEALKEY". Mounting the reservoir is so easy to do as it features standard 120mm fan mounting holes. You use the supplied screws for a secure hold in the housing. There are 7x G1/4" connections available, so you can design your setup very flexibly. It's best so that everyone can see the "UNI", because it was made of high-quality acrylic, the RGB bar on the side is black POM and the seals are made of EPDM and make a damn noble impression.


Features at a glance
• addressable RGB stripe incl.
• 7x G1/4“ connections
• Standard 120mm fan mounting holes for easy installation
• noble materials
• universal adapter for D5 & DDC

Technical details
• Product dimensions: (W x H x D): 120 x 120 x 31 mm
• Color: Clear
• Material: acrylic glass, plastic
• Connections: 7x G1/4" ports

Xylem LOWARA D5 VARIO
• Dimensions: (LxWxH) 65x65x57mm
• Design: Electronically commutated spherical motor
• Materials: Stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminum oxide, hard carbon
• Rated voltage: 12V DC
• Power consumption: max. 35W• Permitted voltage range: 8-24V DC
• Head at 12V: 3.7m
• Maximum flow rate: 1500l/h • Pump medium: water, water-glycol mixtures
• Max. system temperature: 60°C
• System pressure: max. 1.5 bar
• Power connector: 4pin Molex
• Speedometer signal: yes (via 3pin Molex)
• PWM: no

scope of delivery
• 1x UNI 120
• 4x mounting screws
• 1x universal adapter for D5 & DDC
• 1x D5 pump



Important note

・Compatible with any case that features a 120mm fan mount.
・The DDC/D5 pump is water-lubricated and must not run dry; otherwise, it may result in permanent bearing damage.
・Tighten fittings into the distroplate by hand only, without using a wrench. Risk: Acrylic may crack, leading to potential leaks.
