■製品仕様  メーカーリンク

---

MSI MEG Prospect 700R ケース向け フラットタイプのポンプ一体型リザーバー
3pin 5V デジタル(アドレッサブル)RGB LED搭載
PWMコントロール対応D5ポンプ搭載

対応ケース：
・MSI MEG Prospect 700R
・MSI MEG Prospect 700RL
対応ケースリストはこちら

揚程：3.9m　流量：1500L/h

サイズ(W x D x H): 130 x 77 x 415mm
接続口：G1/4

電源供給はSATA電源にて行います。
4ピンファンコネクタ(PWM)をマザーボード等に接続すると回転数を制御出来ます(非接続時は100%フル回転)

ご注意事項：
・RGBケーブルは、必ず3pin 5V デジタル(アドレッサブル)RGB コネクタに接続して下さい
　12V 4pin RGBコネクタに接続すると故障しますのでご注意下さい
・空回し禁止
　必ず水が流れる状態で稼働させてください。

インストレーションマニュアル(PDF)



Details

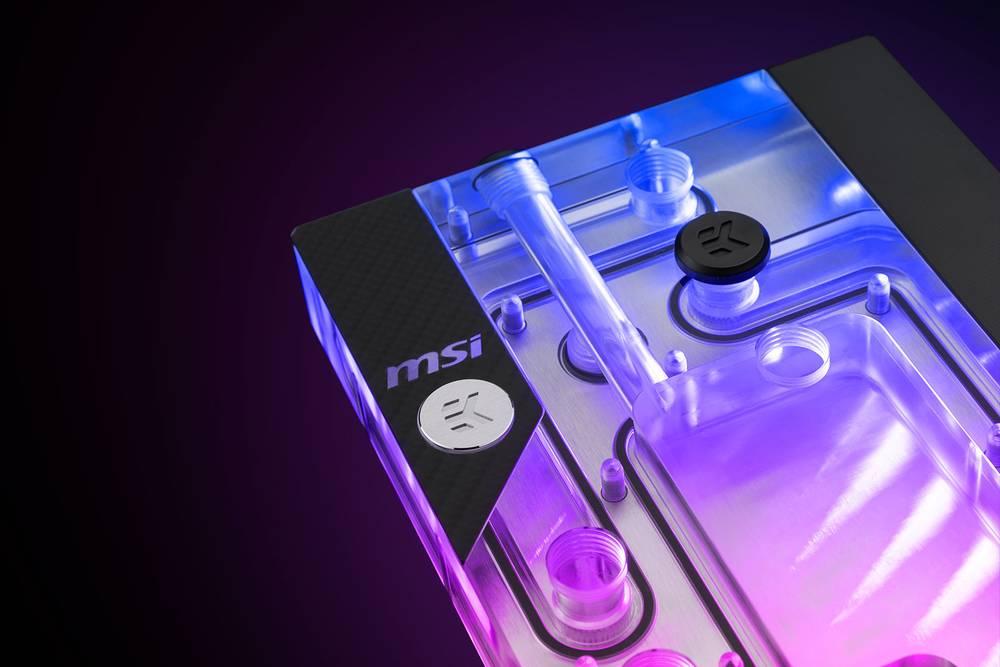

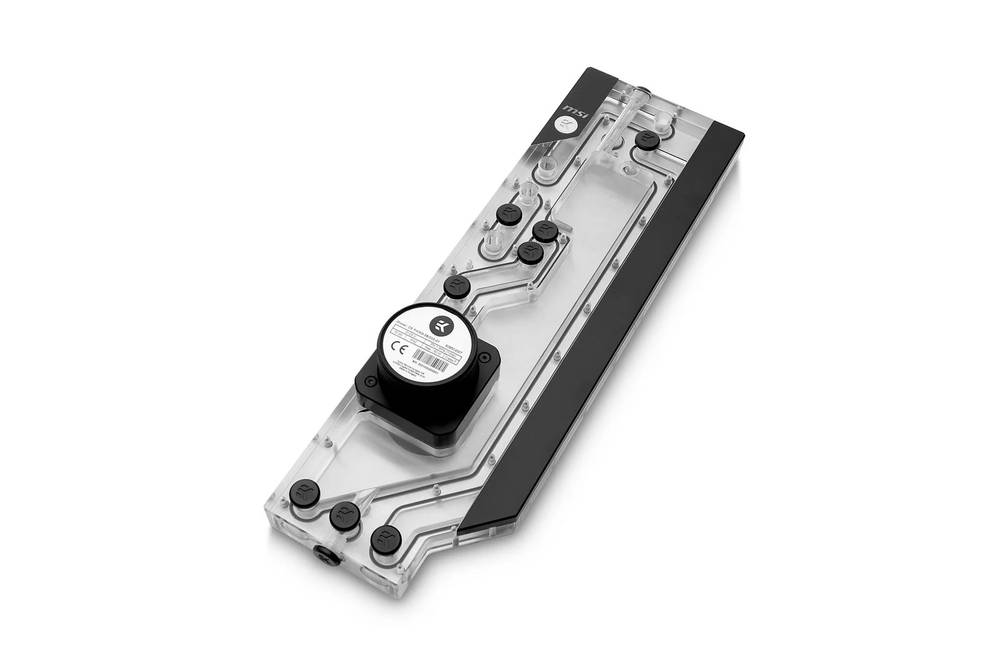

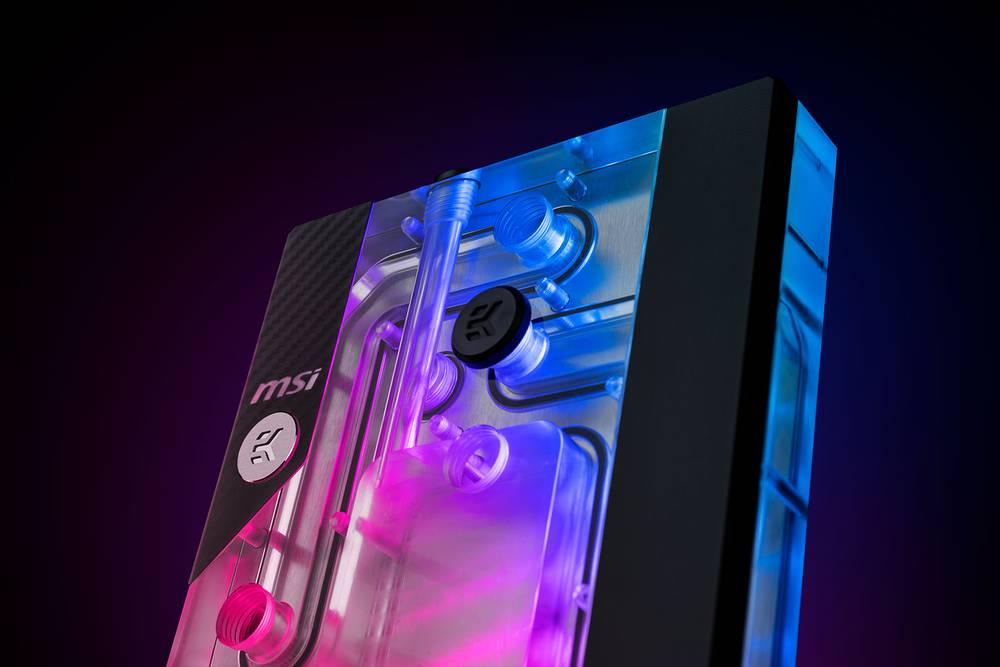

EK-Quantum Reflection² MEG Prospect 700R D-RGB - Plexi is a water cooling reservoir, routing, and pump solution made to fit award-winning MSI MEG Prospect 700R and 700RL cases. This "distro plate" is specifically designed to provide an advanced water cooling solution with a market-leading D5 pump for users who are building custom loop liquid cooling solutions in these mid-tower gaming cases.


Supported MSI MEG cases:

・MEG Prospect 700R
・MEG Prospect 700RL


The EK-Quantum Reflection² MEG Prospect 700R D-RGB offers multiple industry-standard G1/4" threaded inlets and outlets. The placement of these inlets and outlets is perfectly aligned to fit in line with the PC components in order to maximize tube routing efficiency for an easy and aesthetically pleasing custom water cooling loop.


The radiator compatibility with this distribution plate installed is as follows:

• Front: Up to EK-Quantum Surface X360
• Top: Up to EK-Quantum Surface P360

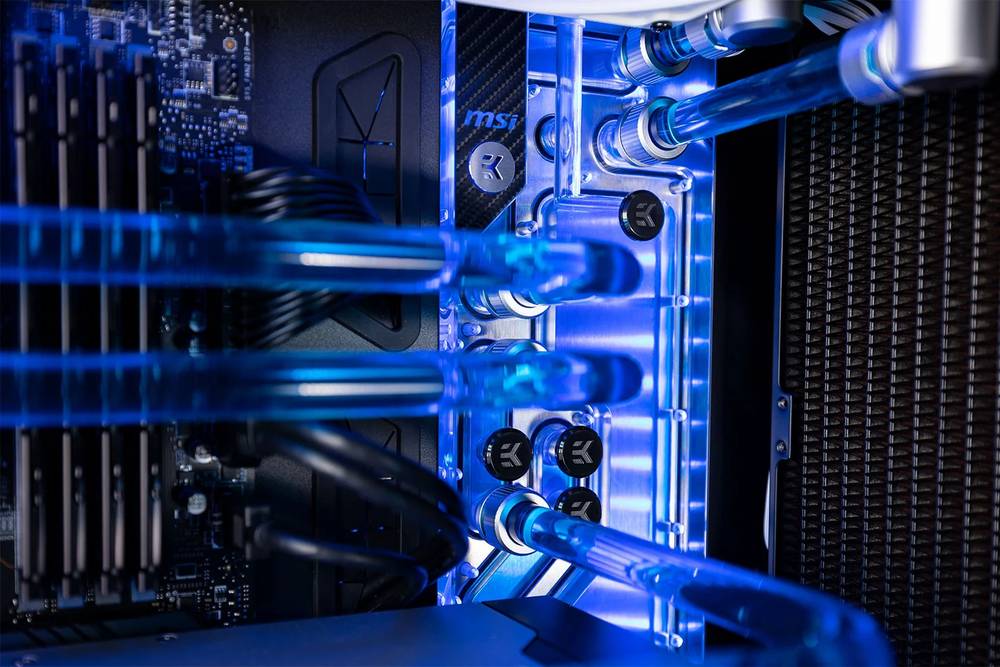

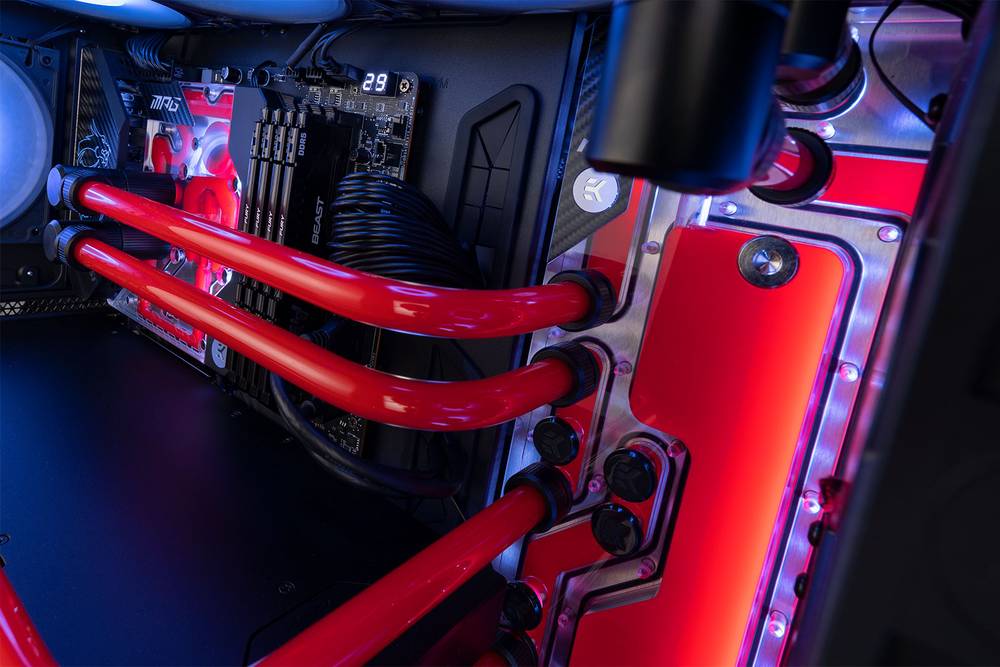

Engineered to be mounted next to the motherboard, the EK-Quantum Reflection² MEG Prospect 700R D-RGB can fit perfectly within the supported MSI MEG 700R cases.

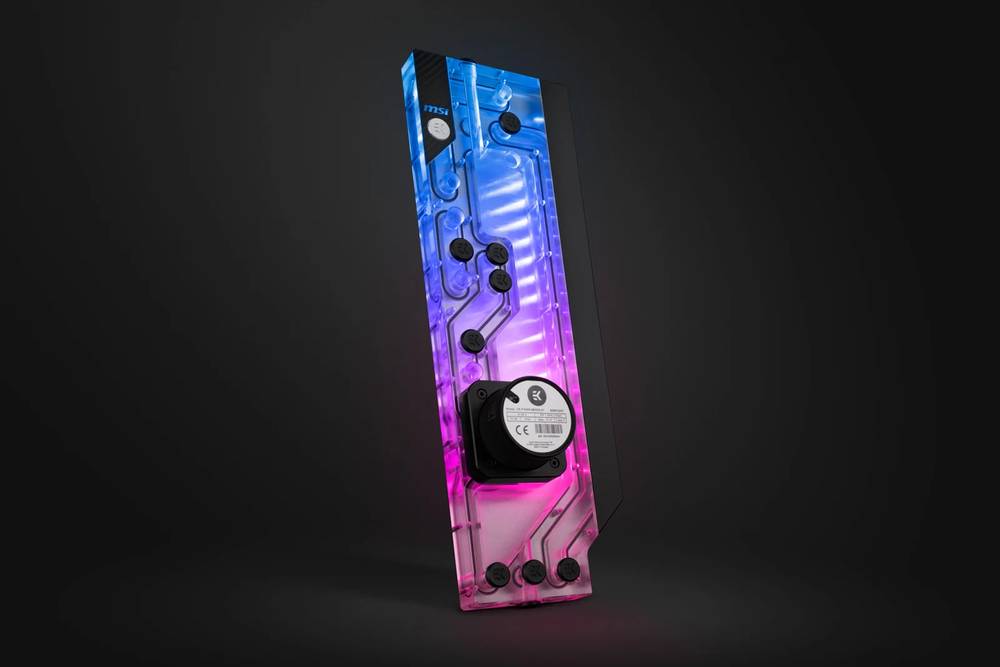

The built-in addressable D-RGB LED strip runs down the entire length of the unit while the anodized black aluminum cover hides the unwanted LED hotspots. The installed addressable D-RGB LED strip connects to the motherboard 5V D-RGB (A-RGB) header via an industry-standard connector. It is compatible with all major motherboard vendor software for a coordinated lighting effect.

Reservoir:
- Dimensions with the attached pump (W x D x H): 130 x 77 x 415mm
- Reservoir volume: ~310ml
- D-RGB LED count: 19
- D-RGB cable length: 450mm
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)


Technical specifications:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: SATA and 4-pin PWM FAN connector


Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present


Enclosed:

- EK-Quantum Reflection² MEG Prospect 700R D-RGB - Plexi
- Mounting mechanism and tools
- 12x MS - Quantum Plug - Ni (preinstalled)
- 10x EK-Quantum Torque Plug Cover - Black (preinstalled)



PLEASE NOTE:

・EK-Matrix7 compatible.
・The Quantum Reflection² distribution plates are designed around Quantum Torque fittings and EK-Quantum Surface radiators.
・The D5 pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
・The aluminum oxide mentioned in the materials specification for the D5 pump is not exposed to water and is perfectly safe to run in copper/nickel loops.
