aquacomputer製 CPU用水冷ブロック「cuplex kryos NEXT」シリーズ
ベース部分に200μmの微細フィン構造を採用

各種情報表示に対応した有機ELディスプレイ「VISION」を搭載
同社コントローラaquaero5/6（接続用aquabusケーブル別売り）や
ソフトウェア「aquasuite」に連動（USBピンヘッダに付属ケーブルにて接続）

フィッティング接続口:
G1/4

対応ソケット:
Intel LGA1700

素材:
PVD/ニッケル: 上部PVDコーティング真鍮、ベースニッケルメッキ銅

寸法:
94 x 94 x 22 mm (ネジとバックプレートを含まない)

内容物:
- ウォーターブロック
- バックプレート
- 取り付け材料 (ねじ、スプリングなど)
- プレミアムサーマルコンパウンド約 0.5 グラム
- プラスチック製へら
- 取扱説明書
※フィッティング別売り

メーカーマニュアルページ(ダウンロード, PDF)

Product No.: 21867


The cuplex kryos NEXT marks a new milestone in CPU water block development. Every detail has been analyzed, optimized and tested to achieve perfection in cooling performance, installation procedure and product features. The result is not just a CPU water block with outstanding performance - it is a product series with various models differing in color and functionality. The VARIO models are the first CPU water blocks globally to incorporate a real-time adjustable base - never before has it been possible to adjust the geometry of a CPU block to perfectly fit the CPU while the PC is in operation. Models with VISION module are equipped with modern electronics: High resolution OLED display, integrated water temperature sensor and USB interface are just three of the features.

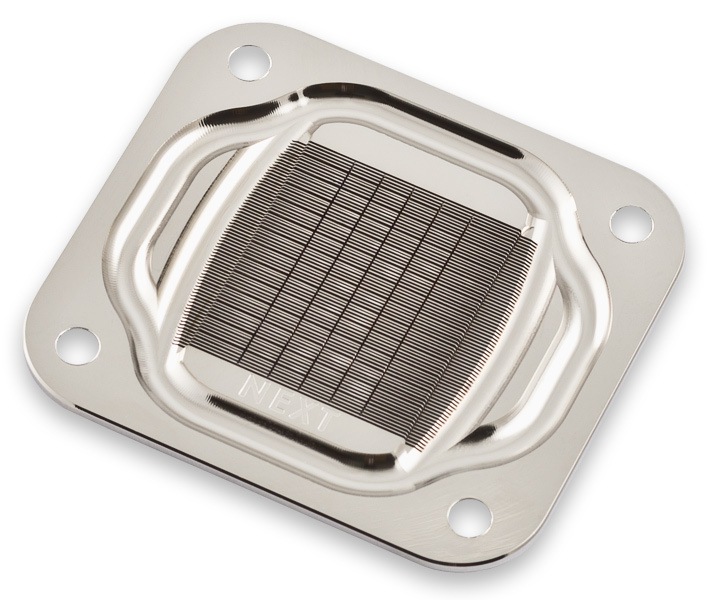

Base part with micro structure
The base part of the cuplex kryos NEXT is equipped with an extremely fine micro structure, the structural width is lower than 200 µm. The coolant is injected centrally through a slot-shaped nozzle and then runs to both sides of the structure. The base itself is manufactured from copper, nickel plated copper or .925 sterling silver depending on model.

Retention system
The cuplex kryos NEXT retention system consists of 2.5 mm thick stainless steel plates equipped with nickel plated spring cups. Springs and knurled screws secure the water block on the motherboard, the retention system has a very clean look when installed. All retention system versions feature a mechanical stop for optimum clamping force and even force distribution. The knurled screws can be installed by hand, additionally a hexagon socket wrench can be used for easy installation.
All water block versions for socket 1700 include a steel back plate with rubber insulation to stabilize the CPU region of the motherboard.
For optimum performance, every cuplex kryos NEXT ships with outstanding thermal compound. A syringe with 0.5 grams of premium grade thermal compound is included, complete with plastic spatula. This compound has a high thermal conductivity and spreads out thin and evenly between CPU and water block due to its low viscosity. The amount is sufficient for approximately five applications.

VARIO: Adjustable geometry
The geometry of the base part of cuplex kryos NEXT VARIO variants can be adjusted using four adjusting screws on the sides of the water block. Each CPU is unique - even slightest variations in height or shape of the metallic lids on top of current CPUs affect cooling performance of a water block considerably. Prior concepts to adjust the geometry of water blocks always required the water block to be disassembled and then reinstalled onto the motherboard, requiring significant time and effort. With the cuplex kryos NEXT VARIO, the geometry is perfectly adjusted in just a few moments. While monitoring core temperatures at maximum CPU load, simply change the geometry using the four adjusting screws. Temperature changes provide an immediate feedback, the perfect setting is quickly identified.

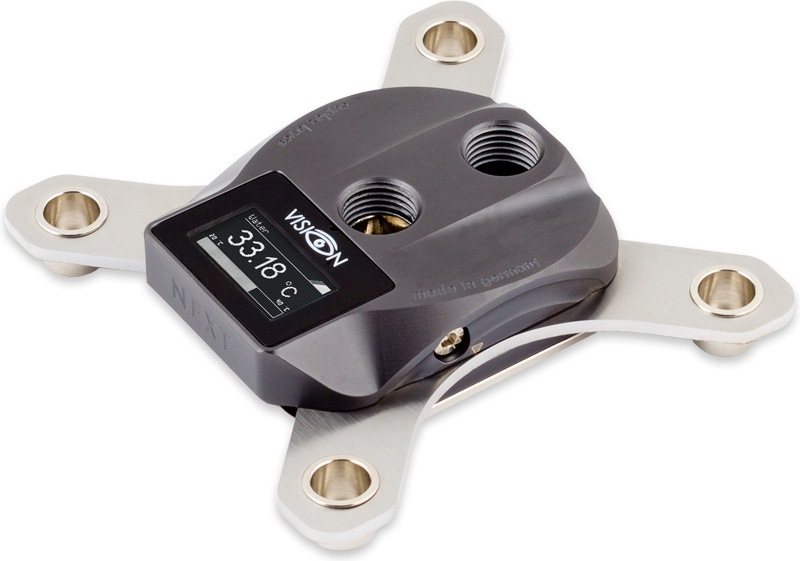

VISION: Integrated electronics
The VISION variants of the cuplex kryos NEXT are equipped with a microcontroller board and OLED display. The features include:
- Water temperature sensor integrated in water block
- Connector for flow sensor, can alternatively be used as alarm output
- USB interface
- aquabus interface for communication with an aquaero 5 or 6
- Customizable display output
- Various hardware data can be displayed from the aquasuite software, for example current CPU load
The acrylic glass variants of the cuplex kryos NEXT with VISION are additionally equipped with a RGB LED that can be controlled depending on temperature or via USB.
Due to limited space, a maximum of two cables can be threaded into the water block. The following combinations are possible:
- USB and aquabus
- USB and flow sensor or alarm output
- aquabus and flow sensor or alarm output

Color variants
The top part of the water block is available in various materials and coatings:
Acetal black: Shiny black high-tech plastic
Acrylic glass: Transparent body suitable for illumination
Copper: Reddish gloss
Nickel plated brass: Bright metallic gloss
PVD plated brass: High quality multi layer coating, dark metallic gloss

Material combination
PVD/nickel: Top part PVD plated brass, base nickel plated copper

Technical details
Dimensions:
Socket 1700: 94 x 94 x 22 mm (not including screws and back plate)
Connection threads: G1/4
Distance between threads: 24 mm

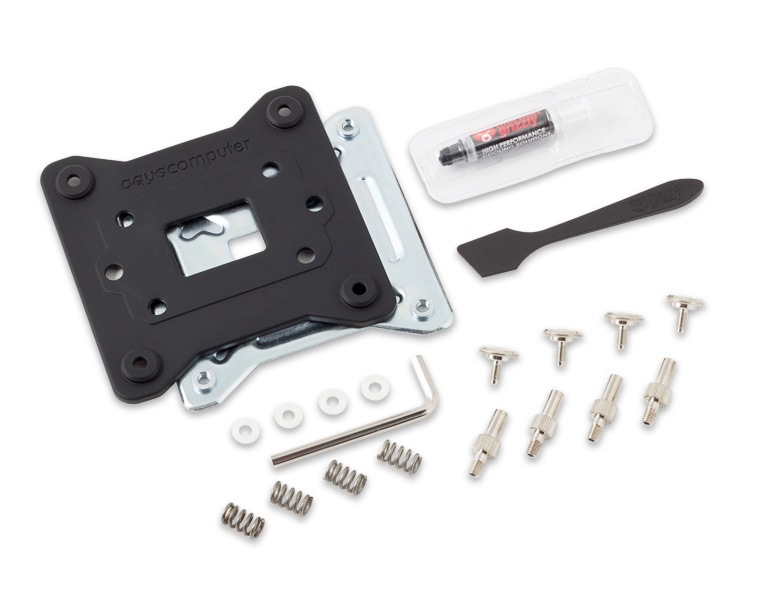

Scope of delivery
- Water block
- Back plate
- Mounting material (screws, springs, etc.)
- Premium thermal compound, approx. 0.5 grams in syringe
- Plastic spatula
- Instruction manual



※モデルにより構造や搭載機能などの仕様が異なります。
動画に紹介されている仕様とは異なるモデルもありますのでご注意下さい。

※VISION機能およびソフトウェア「aquasuite」の使用方法等につきましてはサポート出来ません。
ご購入者様ご自身にてお調べ下さい。


---

［保証に関して］
初期不良対応のみとさせていただきます。
期間はお客様の手元に到着した日より10日間となります。
お客様のご都合による商品のご返品は受付ておりませんのでご注意下さい。
