Fractral Design Torrent ケース向け、フラットタイプのポンプ一体型リザーバー
3pin 5V デジタル(アドレッサブル)RGB LED搭載
PWMコントロール対応DDCポンプ搭載

対応ケース：
・Fractal Design Torrent
対応ケースリストはこちら

揚程: 5.2m　流量: 1000L/h
リザーバー容量: ~234ml

サイズ(W x D x H): 146 x 41 x 333mm
接続口: G1/4

電源供給はSATA電源にて行います。
4ピンファンコネクタ(PWM)をマザーボード等に接続すると回転数を制御出来ます(非接続時は100%フル回転)

ご注意事項：
・RGBケーブルは、必ず3pin 5V デジタル(アドレッサブル)RGB コネクタに接続して下さい
　12V 4pin RGBコネクタに接続すると故障しますのでご注意下さい
・空回し禁止
　必ず水が流れる状態で稼働させてください。

インストレーションマニュアル(PDF)



Details



The EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB – Plexi is a fully integrated water-cooling reservoir, coolant routing, and pump solution made to fit the Fractal Design Torrent case. This Reflection² distribution plate is EK-Matrix7 compatible.

Supported Fractal Design case:

・Torrent

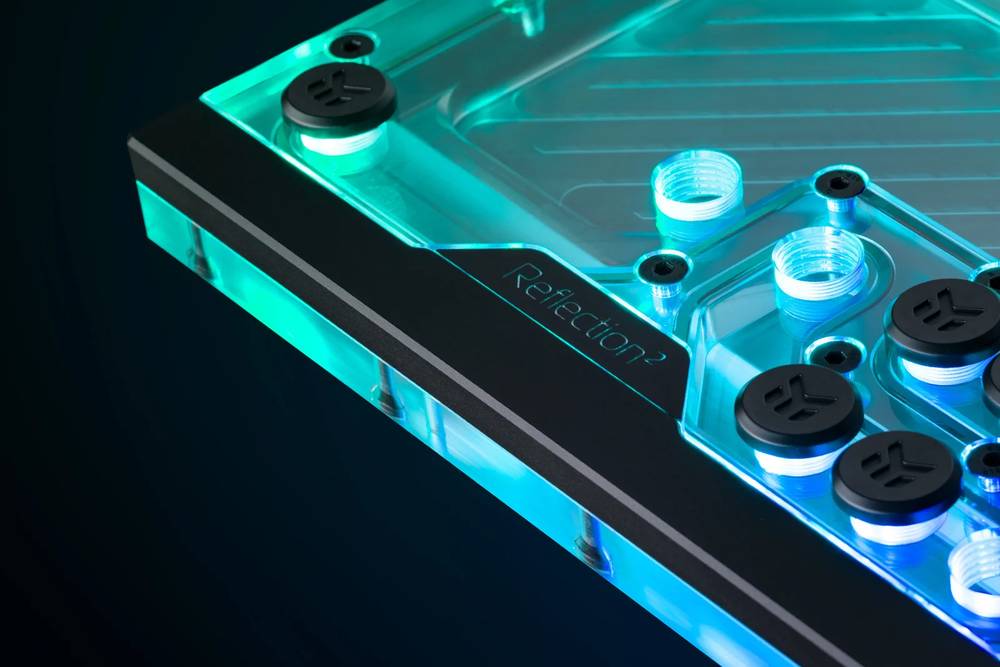

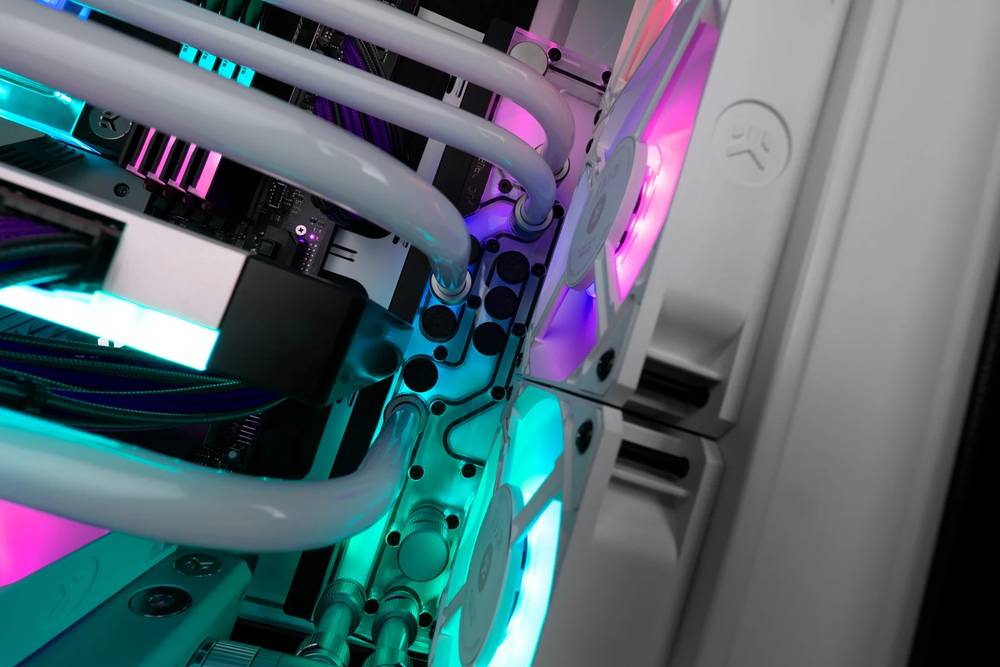

The EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB offers multiple industry-standard G1/4" threaded inlets and outlets. The placement of these inlets and outlets is perfectly aligned to fit in line with the PC components and minimize the number of bends the user has to make to create the perfect hardline loop. The distro plate synergizes well with the EK-Loop Pre-Bent acrylic and metal tubes, further simplifying the loop-building process.


With the installed distro plate, the maximum radiator size is the following:

・Front: Up to EK-Quantum Surface X360
・Bottom: Up to EK-Quantum Surface P240

Please note that a multiport version of the EK-Quantum Surface P240 radiator is required to achieve a clean and aesthetically pleasing tube connection with the distribution plate. The Vertical GPU holder is incompatible if the bottom radiator position is populated with the EK-Quantum Surface P240M. A thinner radiator (e.g., EK-Quantum Surface S240) may be utilized to regain compatibility with the vertical GPU holder. However, this will lead to a more complicated and unsightly connection to the distribution plate, and the entire assembly will be limited to narrower GPU PCBs and water blocks.

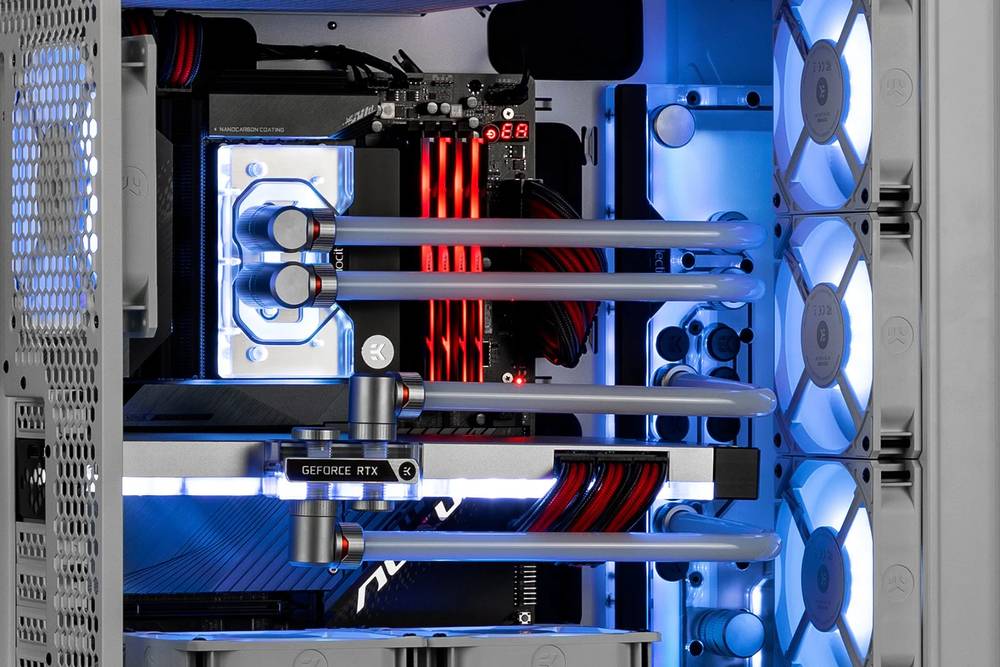

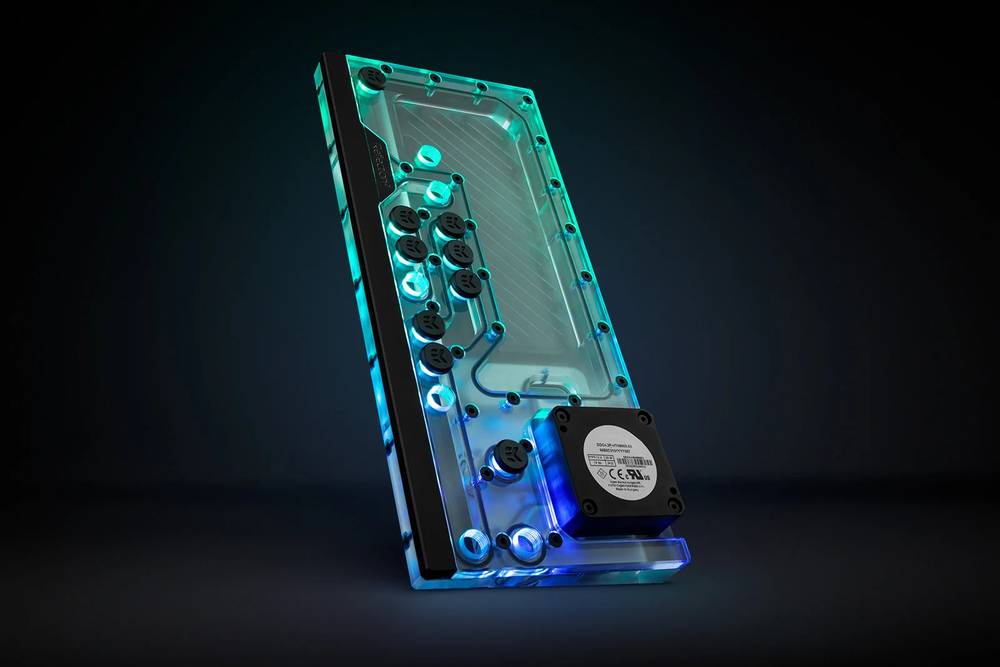

Engineered to be mounted next to the motherboard, the EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB can fit elegantly within the Fractal Design Torrent case. The built-in addressable D-RGB LED strip runs down the unit’s entire length while the anodized black aluminum cover hides the unwanted LED hotspots. The installed addressable D-RGB LED strip connects to the motherboard 5V D-RGB (A-RGB) header via an industry-standard connector. It is compatible with all major motherboard vendor software for a coordinated lighting effect.

Reservoir:

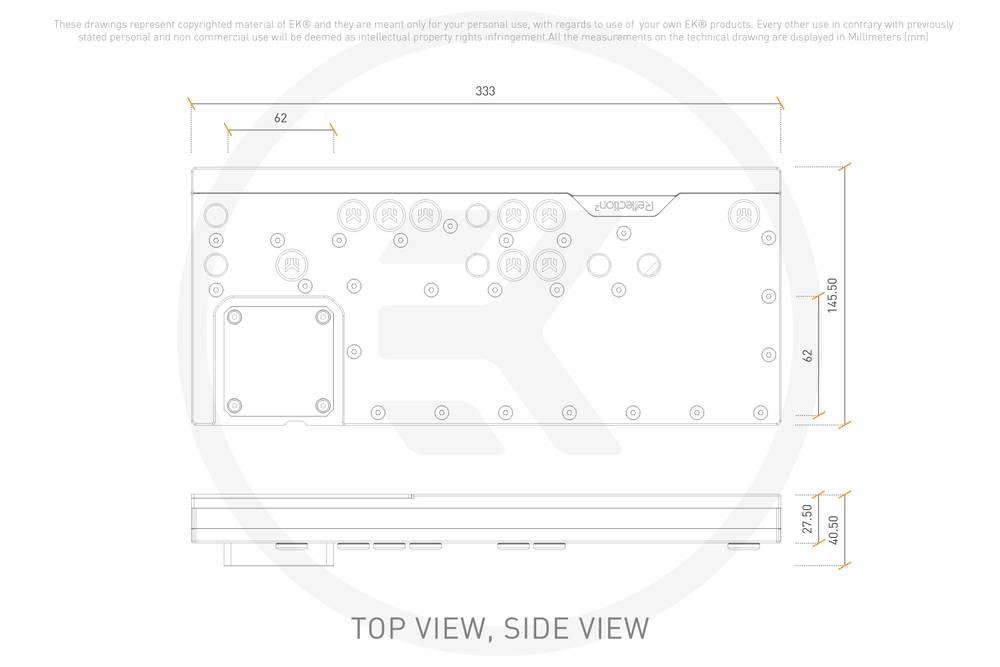

– Dimensions with the attached pump (W x D x H): 146 x 41 x 333mm
– Reservoir volume: ~234ml
– D-RGB LED count: 18
– D-RGB cable length: 450mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Technical specifications:
– Motor: Electronically commuted ball bearing motor
– Rated voltage: 12V DC
– Power consumption: 20W
– Maximum head pressure: up to 5.2m
– Maximum flow rate: up to 1000L/h
– Maximum liquid temperature: 60°C
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminum oxide, hard coal
– Power connector: SATA power and 4-Pin PWM FAN connector for PWM / RPM readout

Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

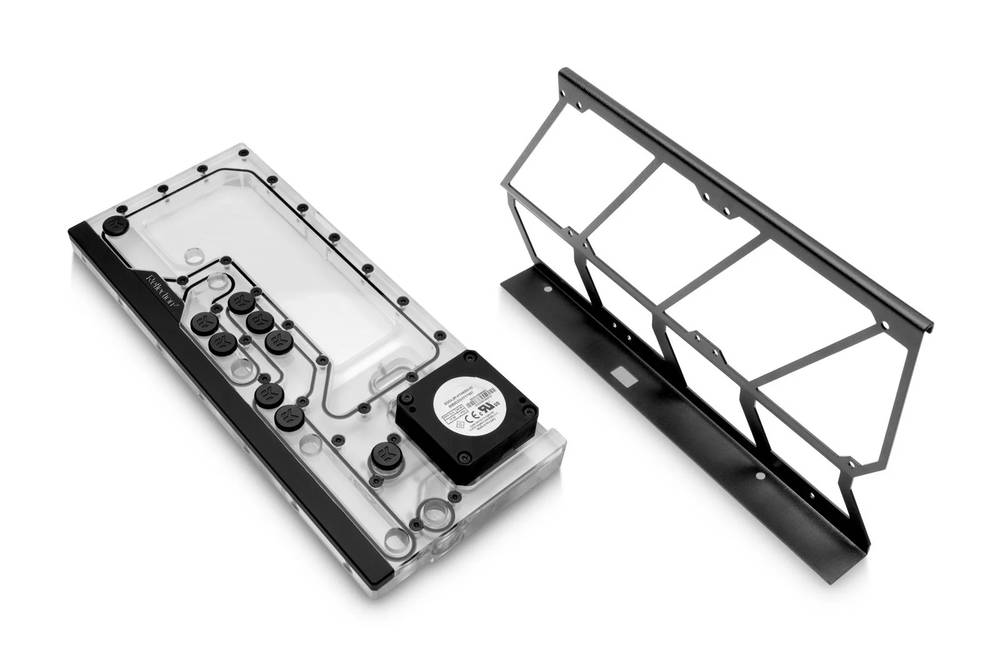

- EK-Quantum Reflection² Torrent DDC 4.2 PWM D-RGB - Plexi
- Mounting mechanism and tools
- Metal radiator bracket
- 9x MS - Quantum Plug - Ni (preinstalled)
- 9x EK-Quantum Torque Plug Cover - Black (preinstalled)

Made in Slovenia - EU!
