Zotac Gaming GeForce RTX 3080/3090 Trinity 向け
VGA基板の裏面を水冷で冷却するバックプレート
3pin 5V アドレッサブルRGB(D-RGB) LED搭載

※同社製 EK-Quantum Vector Trinity RTX 3080/3090 水冷ブロックが別途必要です
※対応型番はEKの互換性サイトにてご確認ください

VGAの型番から対応するEK製水冷ブロックを探す場合はこちらが便利です

Water Block本体: 銅製ベースプレート（ニッケルメッキ仕上）・アクリル樹脂製トップカバー
フィッティング接続口：G1/4
※フィッティングは別売

ご注意事項：
・RGBケーブルは、必ず3pin 5V デジタル(アドレッサブル)RGB コネクタに接続して下さい
　12V 4pin RGBコネクタに接続すると故障しますのでご注意下さい

インストレーションマニュアル(PDF)

Details



EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Plexi is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector Trinity RTX 3080/3090 water blocks and actively cool the backside of all ZOTAC® GeForce RTX™ 3080 and 3090 Trinity GPU.

For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.


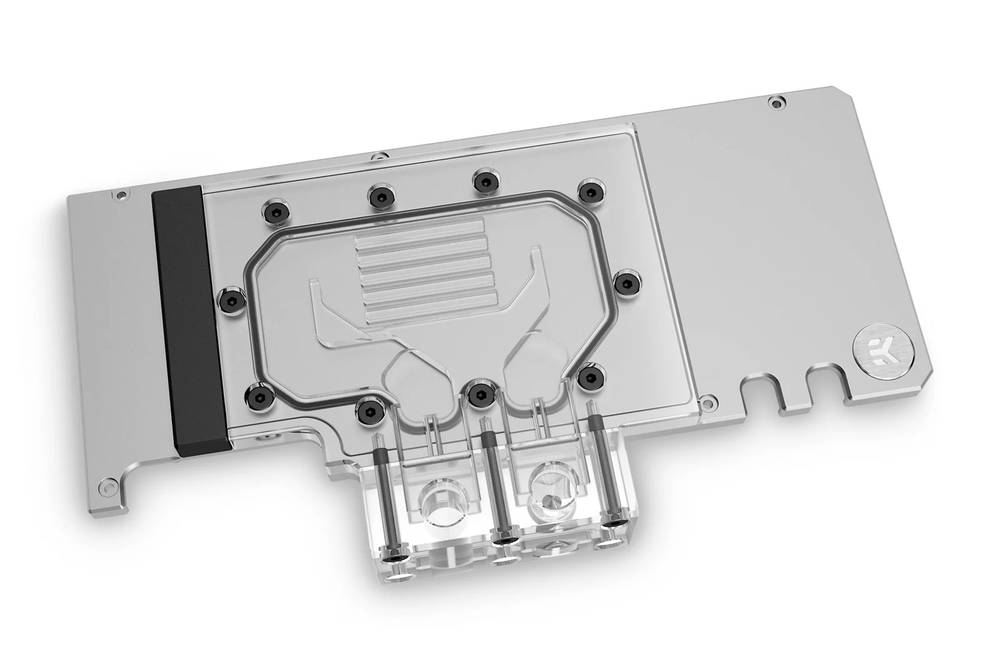

EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate

EK-Quantum Vector Trinity RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling.

The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.

These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer.

The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. The rest of the backplate is made of nickel-plated aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acrylic terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings.

D-RGB lighting on EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB water block

The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.


Enclosed:

- EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate D-RGB - Plexi
- Necessary mounting screws, nuts, and washers
- 1x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads


Technical Specification:

- Dimensions: (LxHxW) - 231x124x15mm
- D-RGB cable length: 500mm
- D-RGB LED count: 8
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Made in Slovenia - Europe!


PLEASE NOTE:
・This block is made for ZOTAC Trinity 3080 and 3090 cards. It is not a stand-alone unit and requires an EK-Quantum Vector Trinity RTX 3080/3090 water block to pair with.
・Due to the immense variety of fittings/barbs available on the market, we guarantee compatibility only with EK fittings.
・This product should NOT be installed with any aluminum Fluid Gaming parts!
・The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.
