回転数信号出力機能付き 流量インジケーター
アドレッサブルRGB搭載
流量表示範囲: 70〜300 L/h、対応回転数: 84〜492rpm
※回転数が低いため、低回転表示可能なマザーボードが必要です

データーシートダウンロード(PDF)
流量データテーブルダウンロード(PDF)
マニュアルダウンロード(PDF)

注意事項：
RGB機能搭載の機器を組み込む際は、元電源をオンにした状態で組み込みますとLEDの損傷および故障の原因となります。
デバイスを組み込む前に必ず元電源をオフにしてから接続いただき、組み込み後、元電源をオンに切り替えください。

技術仕様
・サイズ: 45 x 45 x 39,4 mm
・材質: Plexi

• ・接続口: 2x G1/4"
• ・流量センサー用コネクタ: 3-Pin ファンコネクタ
• ・アドレッサブルRGB: 3-Pin JST (Adapter to 3-Pin 5V included)



Product Information


For all those who like to measure their water flow and value a great look, the Alphacool Eisfluegel Aurora is the optimal choice. It can be easily installed anywhere in the water cooling system and offers outstanding lighting.

High Flow Sensor

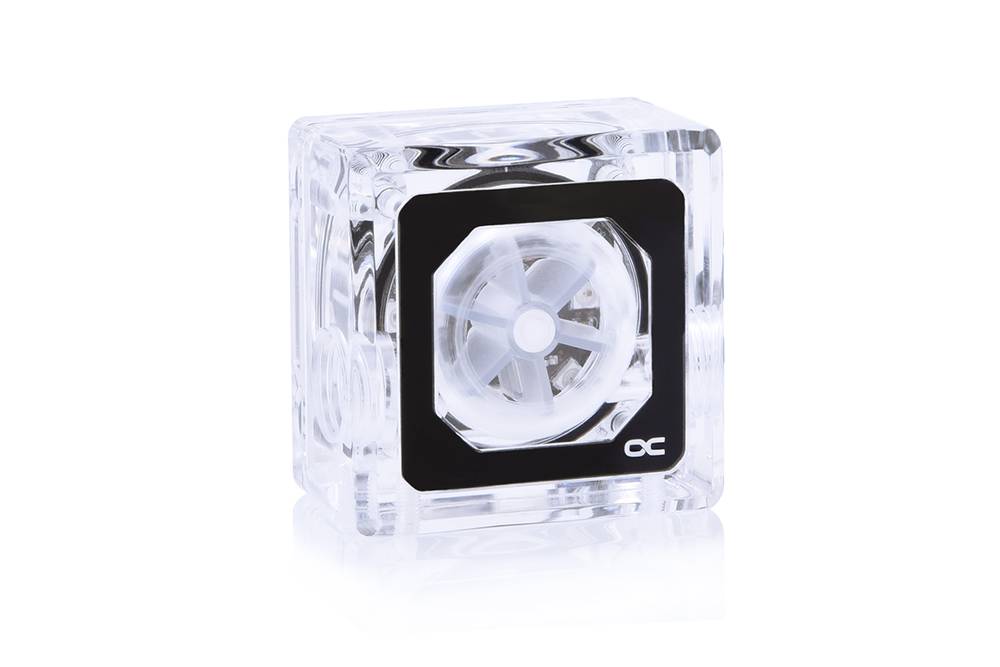

The Eisfluegel is designed for high flow systems and can display a water flow rate of 70 to 300L/h. The Eisfluegel is connected via the 3-pin header to a fan header on the mainboard. The flow rate can then be determined. Since the Eisfluegel is made of plexiglass, the flow can also seen visually.

Digital RGB LEDs

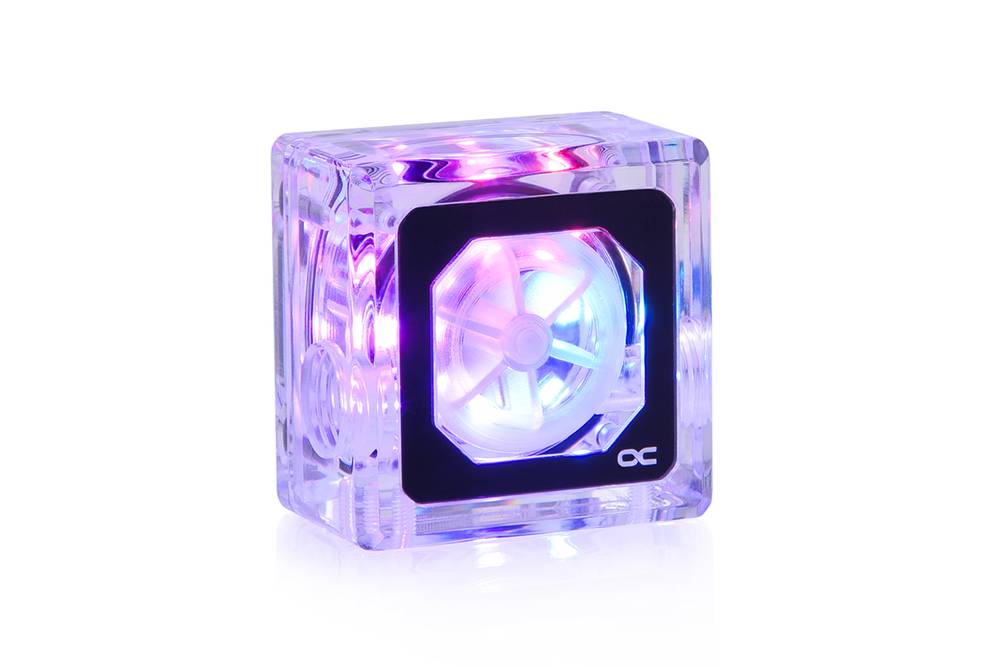

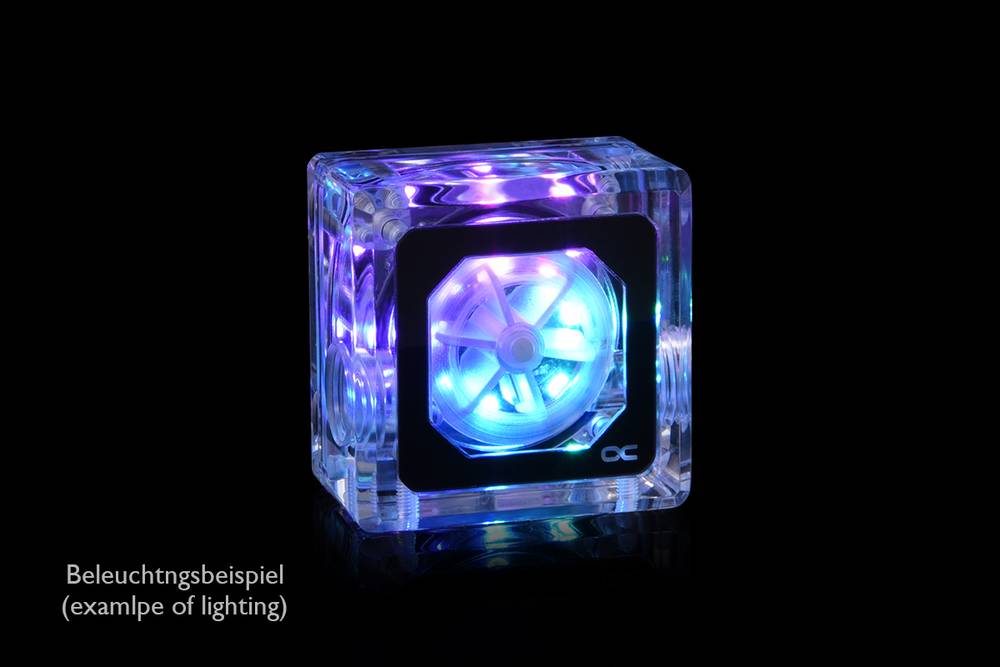

The Eisfluegel has 8 addressable Digital RGB LEDs around the circumference of the flow meter. Since each LED can be controlled individually, all effects can be created by the controller. The connection is made via a 3-pin JST connector which makes the Eisfluegel compatible with all other Digital RGB products from Alphacool. If, however, you prefer to control directly via the mainboard, you can use the included 3-pin 5V adapter.

Integration into the Loop

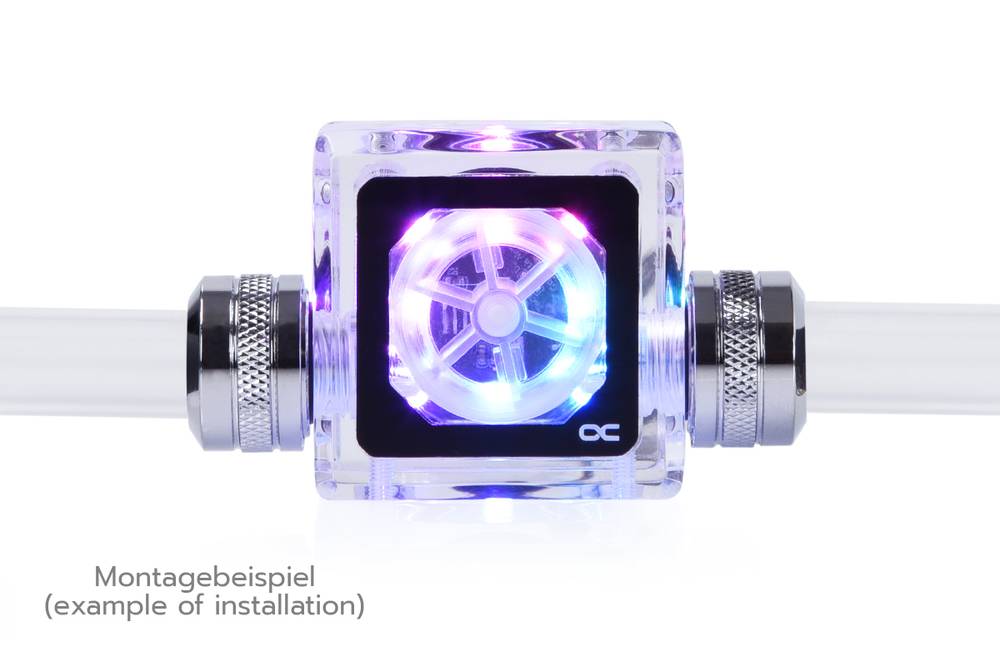

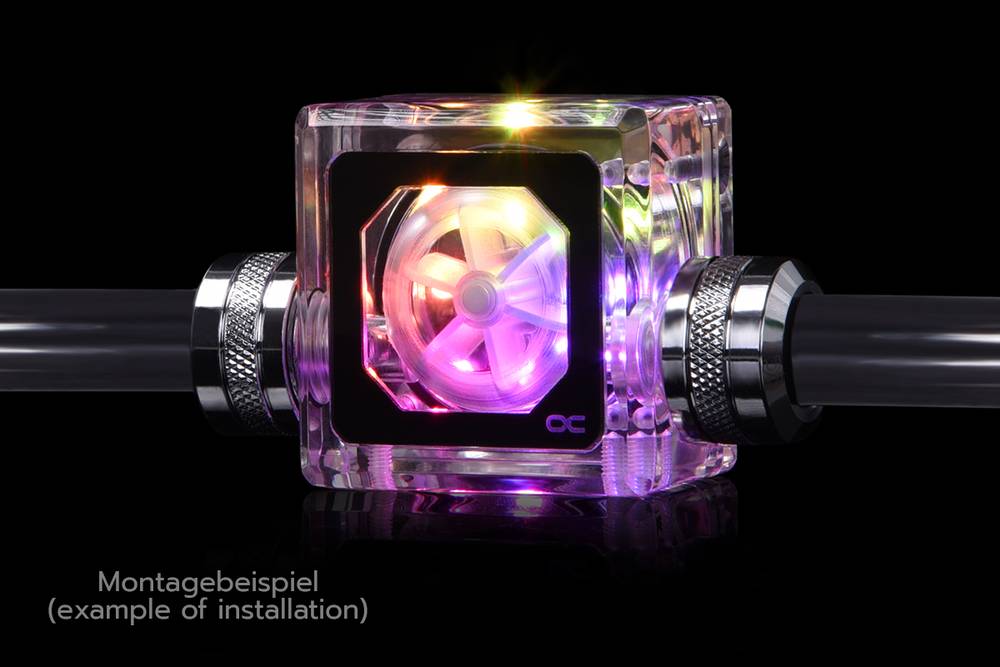

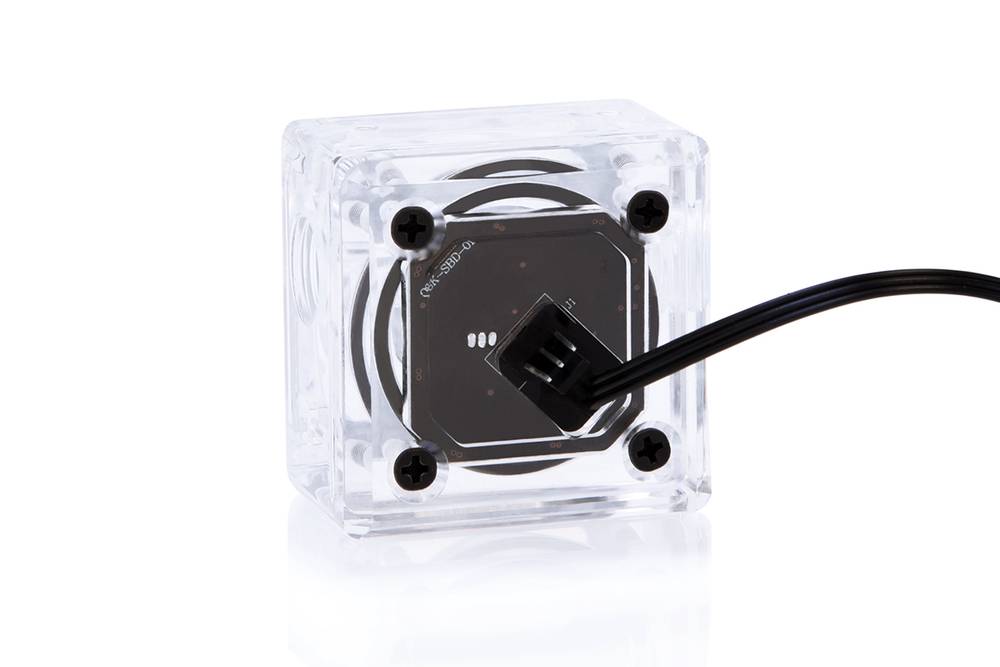

Two G1/4" threads are used to install the flow meter into the loop. Which one is used as IN or OUT is up to the user as it will work both ways. The Eisflügel flow sensor is lightweight and can therefore be freely suspended in the system. On the lower side of the Eisflügel there are two screwing possibilities for the enclosed M3 screws. This allows the flow sensor to be placed anywhere in the case if you wish to secure it. In the scope of supply there is also a self-adhesive small velcro mat which can also be used for the installation of the Eisfluegel.

Attention:
1. To connect the flow sensor to the mainboard a separate 3-pin female to 3-pin female connection cable is required.
2. The Eisfluegel Aurora flow indicator "HighFlow" only works with a flow rate of 70L/h!


保証期間
初期不良対応のみとさせていただきます。
期間はお客様の手元に到着した日より10日間となります。
お客様のご都合による商品のご返品は受付ておりませんのでご注意下さい。
